Pressing in, pressing out, riveting, imprinting, edging, bending of wires and sheets. Embossing, beading and crimping of easy to form materials (e.g. copper, brass).

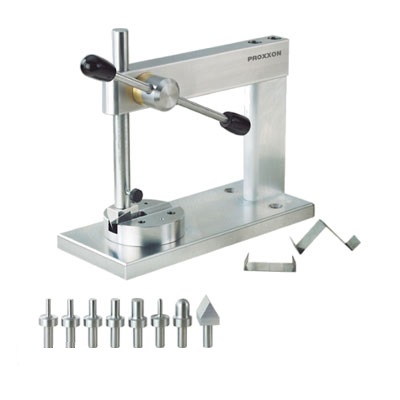

With 5 cylindrical punching tools (Ø 3 - 4 - 5 - 6 and 8mm, surface hardened), one each semi-spherical profile Ø 3 and Ø 9mm and a 90° square prism for bending sheet metal.
Punching tools are inserted into the toothed rack and fixed with a knurled screw. The counterpart is an easily adjustable, hardened revolving plate with all required holes and bottom dies for the above-specified punching tools.
Force of pressure approx. 1,000N (100kg). Maximum stroke of toothed rack with inserted punch 65mm, above revolving plate 50mm. Solid steel arm with 120mm throat. Ground base plate of steel, 80 x 190mm with an 8-mm centre and two fastening bores. Weight approx. 2,800g.
102374
|
