Line-up pin used with a 16mm plastic bush to ensure concentricity of the cutter to the guide bush when fitting the sub-base.
Suits collet sizes 1/4 inch, 8mm, 12mm and 1/2 inch.
Instructions for fitting

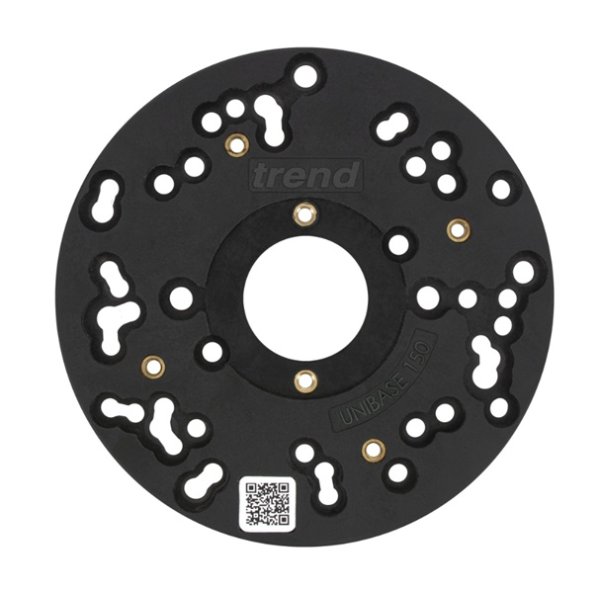

The line-up pin fit into the collet and is plunged through the router base. The line-up bush is fitted into the Unibase and secured. This is then placed over the line-up pin and rotated in order to line up the fixing holes. The Unibase screws are tightened and then the line-up bush can be replaced with any choice of Trend guide bushes. These range from 10mm up to 30mm (GB10 - GB32).
For larger diameter cutters a 40mm guide bush (GB40) is available.
Ideal for hinge jig and lock jig
Diameter: 170 mm
Thickness: 8 mm
Bore: 39 mm
Recess: 60 mm
Screw thread: 2BA
